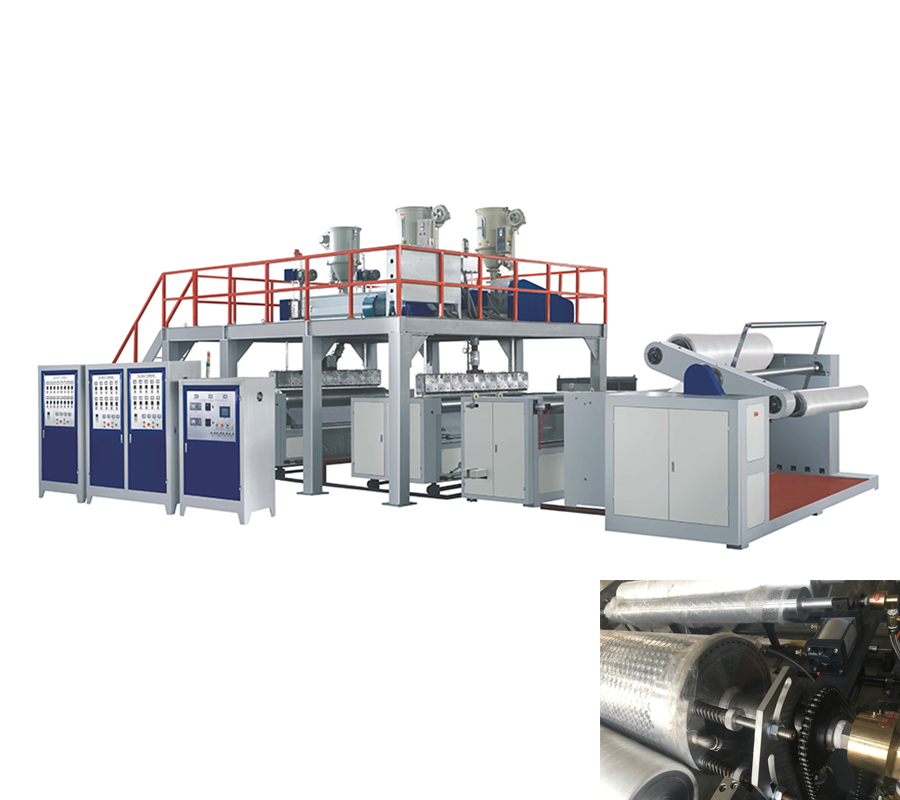

Compounding Bubble Film Machine

Category:3 LAYERS BUBBLE FILM MACHINE

Product features

Compounding Bubble Film Making Machine is equipped with 7 Units including: Extruder, Vacuum Forming Bubble Roller, Trimming, Wastage Collection, Balancing, Winder and Electrical System. Mainly used to produce 3-5 layer bubble film. Max can be customized to produce 7 Layer Bubble Film. Have a wide usage application.

Product description:

Basic Introduction

Compounding Bubble Film Making Machine is equipped with 7 Units including: Extruder, Vacuum Forming Bubble Roller, Trimming, Wastage Collection, Balancing, Winder and Electrical System. Mainly used to produce 3-5 layer bubble film. Max can be customized to produce 7 Layer Bubble Film. Have a wide usage application.



5layer Bubble Film:

Comparing with traditional models,this model add one extruder, one compounding unit and two material shaft. Entire machine use PLC touch screen automatic control to make different kind of compounding products.

In real manufacturing, this machine can achievefull automatic function from material feeding to end product winding and changing. Easy Operation, stable working, low invest and high output.


Usable Material:

Model

JDFPE-1600B

JDFPE-1600C

JDFPE-2000B

JDFPE-2000C

Main Extruder

Φ80mm

Φ80/70mm

Φ90mm

Φ90/80mm

Minor extruder

Φ60mm

Φ70mm

Φ70mm

Φ80mm

Film Width

1600mm

1600mm

2000mm

2000mm

Capacity

150KG/Hour

200KG/Hour

180KG/Hour

250KG/Hour

Working Line Speed

25Meter/minute

35Meter/minute

25Meter/minute

35Meter/minute

Main Motor

30KW

30KW/22KW

45KW

45KW/30KW

Minor Motor

15KW

22KW

22KW

22KW

Total Power

156KW

225KW

182KW

284KW

Power Supply

380/3/4/50(Volt/Ph/Line/Hz)

380/3/4/50(Volt/Ph/Line/Hz)

380/3/4/50(Volt/Ph/Line/Hz)

380/3/4/50(Volt/Ph/Line/Hz)

OveralDemension

17000x5500x4100mm

17000x5500x4100mm

17000x6500x4100mm

17000x6500x4100mm


Bubble Film machine use material LDPE MFI=2~7 as main material,can mix with LLDPE MFI=1.0~1.5 as support material, or use recycle LDPE MFI=2~4 as base material, to make bubble film products.


Tech Data:

Optional Parts


1.Side Sucking Forming Roller, Less Sucking Variation and Better Chilling Ability.



2.Lamination Grade T-Die, to improve product quality, make sure T-Die Blocking without changing of T-Die Pressure, no matter how much you block, material coming out always in even form.



3.Unwinder with Automatic Tension and EPC
