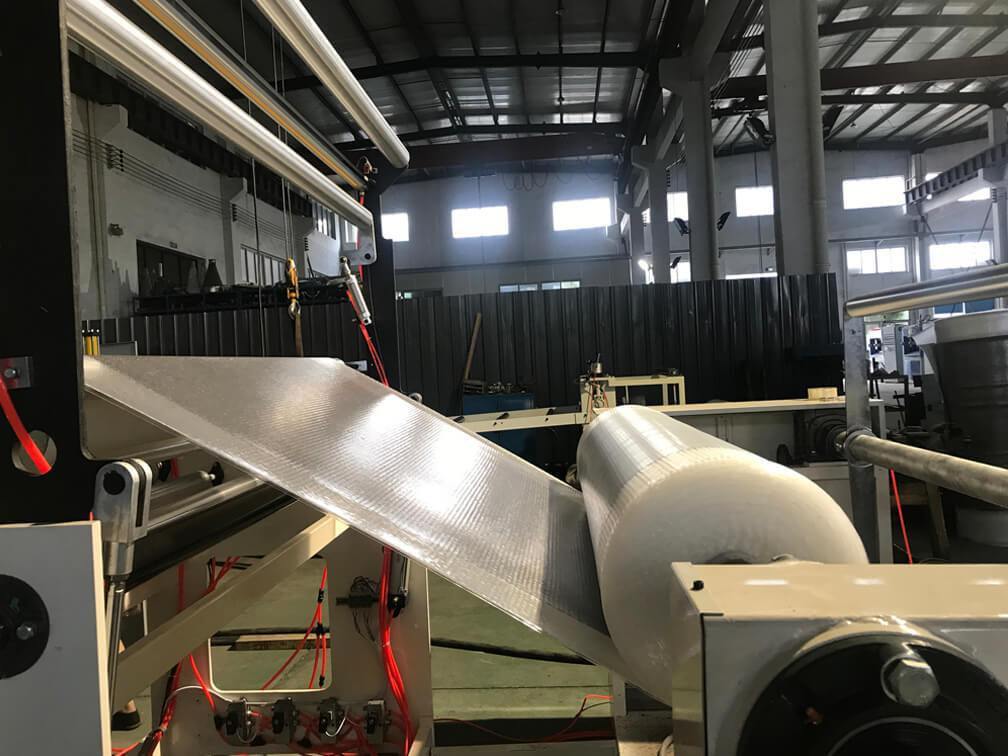

The Compounding Bubble Film Making Machine is outfitted with seven precision-engineered units, including the Extruder, Vacuum Forming Bubble Roller, Trimming, Wastage Collection, Balancing, Winder, and Electrical System. This advanced machinery is primarily designed for the production of high-quality 3-5 layer bubble film, with customization options to produce a maximum of 7 layers. With its broad range of potential applications, this state-of-the-art machine is an excellent investment for businesses seeking to expand their product offerings and meet the demands of diverse markets.
Product description

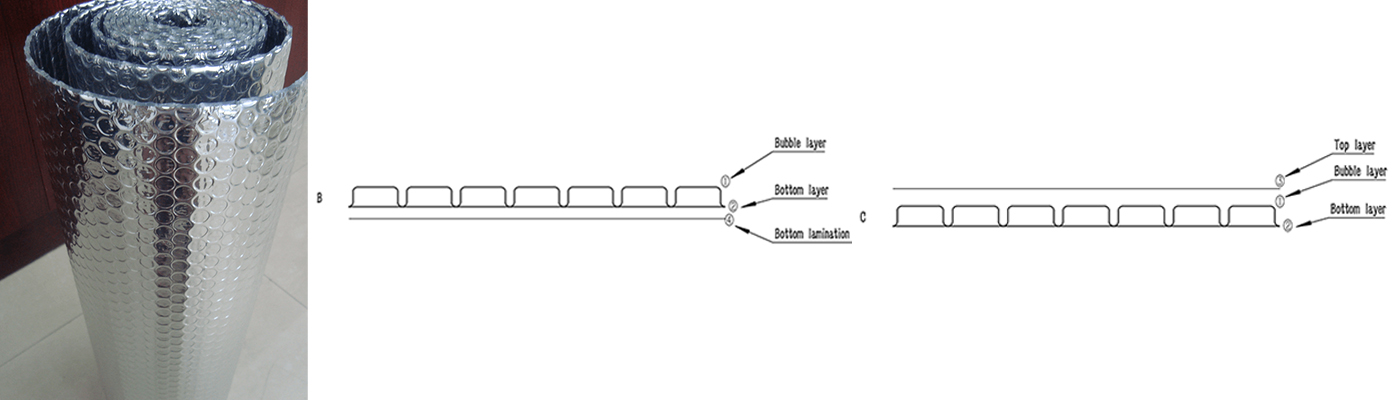

3-layer bubble film is a protective packaging material consisting of three layers of polyethylene film with air-filled bubbles in between. It provides excellent cushioning and shock absorption, is lightweight and flexible, and has insulating properties. It's widely used in various industries, including e-commerce and manufacturing, for packaging fragile items during shipping and handling.
Main Technical Parameters
|
Model |
HLFPE-1600 |
HLFPE-2000 |
HLFPE-3000 |
|
Main screw dia |
Φ70-60mm |
Φ80-70mm |
Φ90-80mm |
|
Minor screw dia |
Φ60mm |
Φ70mm |
Φ80mm |
|
Finished film width |
1600mm |
2000mm |
3000mm |
|
Output |
180kg/hr |
230kg/hr |
280kg/hr |
|
Main extruder motor |
45kw |
45kw |
55kw |
|
Sub-extruder motor |
22-15kw |
30-22kw |
45-37kw |
|
Total power |
156kw |
210kw |
300kw |
|
L/D |
34：1 |
34：1 |
34：1 |
|
Power supply |
380/3/4/50(Volt/Ph/Line/Hz) |
380/3/4/50(Volt/Ph/Line/Hz) |
380/3/4/50(Volt/Ph/Line/Hz) |
|
Weight |
12000kg |
14000kg |
16000kg |
|
Overall dimension(LxWxH)mm |
12000*4800*3200mm |
12000*5100*3200mm |
12000*5500*3200mm |
Note: All equipments supplied by my company are not includeattached unit (water, air electricity)
Optional Parts

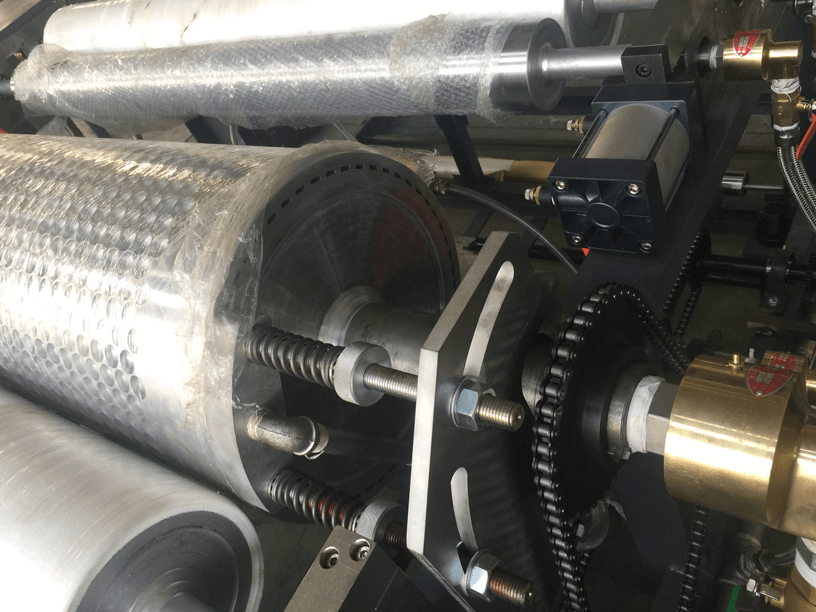

1.Side Sucking Forming Roller, Less Sucking Variation and Better Chilling Ability.

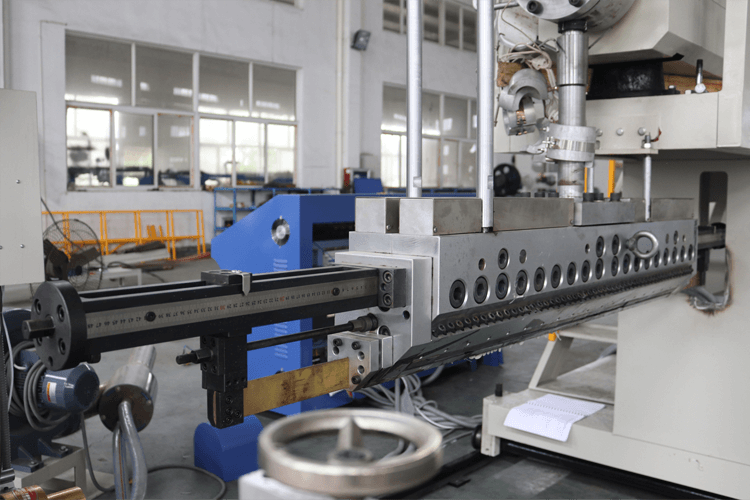

2.Lamination Grade T-Die, to improve product quality, make sure T-Die Blocking without changing of T-Die Pressure, no matter how much you block, material coming out always in even form.

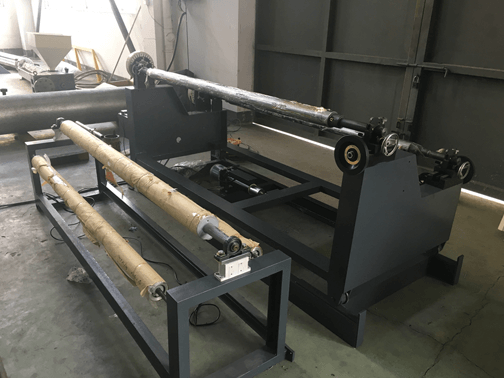

3.Unwinder with Automatic Tension and EPC
4.New Design of Winder which allows you to wind Big Jumbo Rolls max to 1500mm without making winder size too high. Save wastage and reduce labor work.
New Design Winder with Meg Tension Control and Converter Speed Control. Making Sure winding roll quality.
