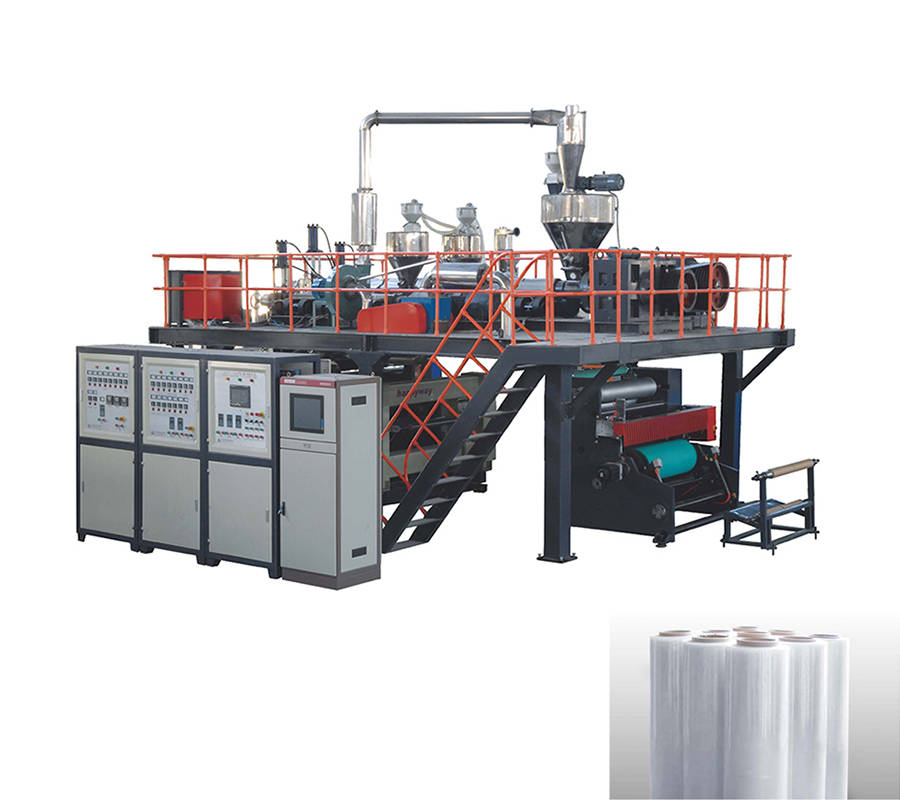

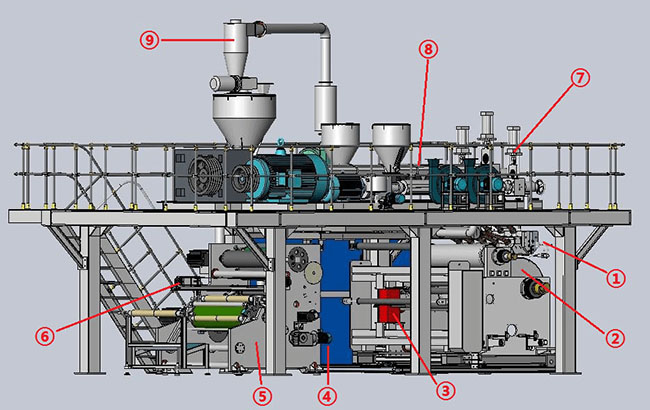

The multi-layer co-extrusion high-speed stretch film machine produces PE Stretch Film at a speed of up to 250m/min. It is designed based on the characteristics of similar products at home and abroad. The machine is comprised of an extrusion unit, traction system, trimming unit, and electrical components. It also features a JC-times brand die head that ensures uniformity and a single-sided adhesive effect while reducing glue waste. The machine is an efficient and effective solution for stretch film production.
Product Features
The multi-layer co-extrusion high-speed stretch film machine produces PE Stretch Film at a speed of up to 250m/min. It is designed based on the characteristics of similar products at home and abroad. The machine is comprised of an extrusion unit, traction system, trimming unit, and electrical components. It also features a JC-times brand die head that ensures uniformity and a single-sided adhesive effect while reducing glue waste. The machine is an efficient and effective solution for stretch film production.
1.This model uses a 3-screw extruder to produce a 3-7-layer stretch film, resulting in strong stretching ability.
2: The machine is capable of a stable working speed of over 250M/min due to the use of Japanese NSK brand bearings and a thickened machine framework.
3: The machine is controlled by a touch screen computer and a microcomputer programmable controller (PLC), which reduces labor intensity and improves production efficiency.
4: The width and number of layers of the film can be customized to meet different market needs.
5: The machine features a Trimming Wastage Online Recycle System to save production costs and an online thickness gauge to monitor thickness deviation.
6: Additionally, the machine uses central modular temperature control to achieve 100% accurate temperature control for ultra-high-speed production.
Main Technical Parameters
|
Model |
HLCPE120/80/70-1000 |
|
Screw Diameter |
Φ120mm/Φ80mm/Φ70mm |
|
L/D |
30:1 |
|
Finished Film Width |
1000mm(500×2 rolls) |
|
Finished Film Thickness |
0.01-0.05mm |
|
Max.Line Speed |
350m/min |
|
Max. Output |
400kg/hr |
|
Main Motor Power |
110kW/45kW/30kW |
|
Total Power Power |
310kW |
|
Overal Demension |
10500mm×6900mm×5300mm |
|
Power Supply |
380/3/4/50(Volt/Ph/Line/Hz) |
Note: All equipments supplied by my company are not includeattached unit (water, air electricity)
