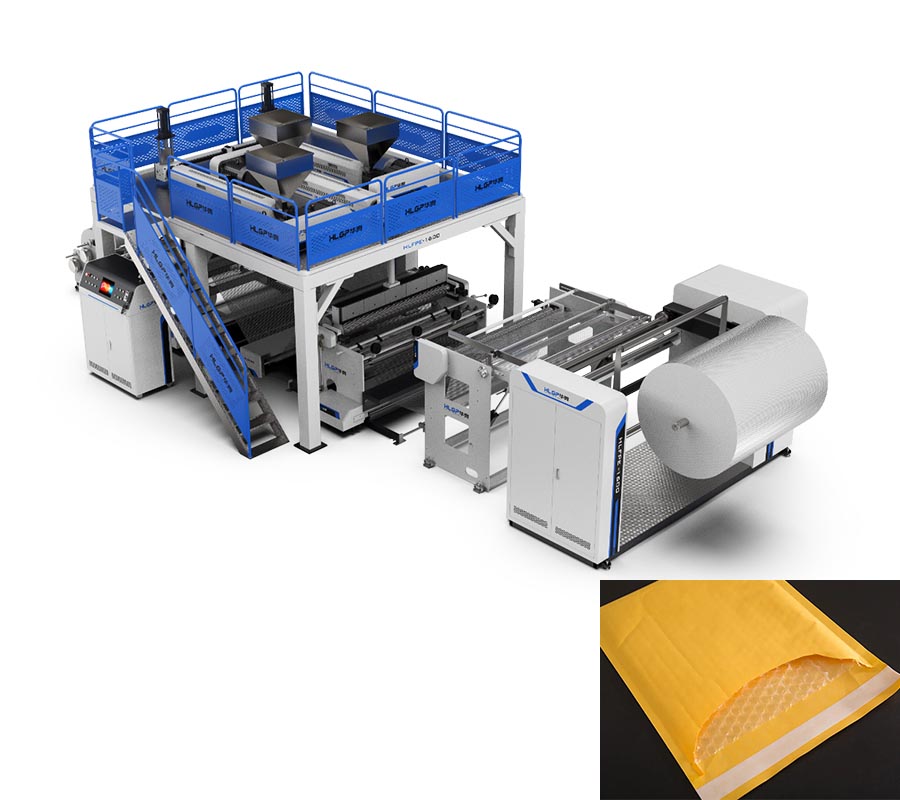

Product description
The 3-layer high-speed bubble film making machine is a top-performing machine that produces bubble film with high efficiency and superior quality. It has a maximum production capacity of [insert production capacity], making it suitable for large-scale production.
Equipped with advanced components, such as an extruder, bubble forming roller, trimming device, and waste collection system, this machine is designed for ease of use and maintenance. Its features include high production efficiency, low energy consumption, and the ability to produce bubble films with various specifications.
This machine is widely used in industries such as packaging, cushioning, and insulation. Its advanced features make it an ideal choice for manufacturers who require large-scale production of bubble film.

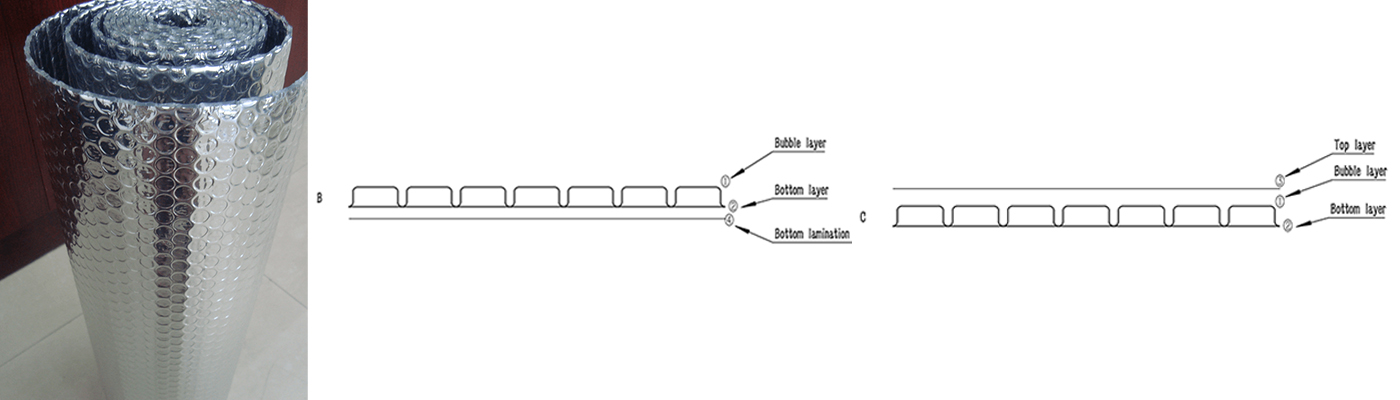

5layer Bubble Film
Comparing with traditional models，this model add one extruder, one compounding unit and two material shaft. Entire machine use PLC touch screen automatic control to make different kind of compounding products.
In real manufacturing, this machine can achieve full automatic function from material feeding to end product winding and changing. Easy Operation, stable working, low invest and high output.
Usable Material
Bubble Film machine use material LDPE MFI=2~7 as main material，can mix with LLDPE MFI=1.0~1.5 as support material， or use recycle LDPE MFI=2~4 as base material, to make bubble film products.
Main Technical Parameters
|
Model |
HLFPE-1600 |
HLFPE-2000 |
HLFPE-3000 |
|
Main Screw Dia |
90-65 |
90-70 |
110-80 |
|
Minor Screw Dia |
65 |
70 |
80 |
|
Finished Film Width |
1600 |
2000 |
3000 |
|
Output |
280kg |
320kg |
450kg |
|
Main Extruder Motor |
45-22kw |
45-22kw |
55-37kw |
|
Sub-Extruder Motor |
22kw |
22kw |
37kw |
|
Total Power |
180kw |
250kw |
350kw |
|
L/D |
34：1 |
34：1 |
34：1 |
|
Power Supply |
380/3/4/50(Volt/Ph/Line/Hz) |
380/3/4/50(Volt/Ph/Line/Hz) |
380/3/4/50(Volt/Ph/Line/Hz) |
|
Weight |
12000*4800*3200mm |
12000*5100*3200mm |
12000*5500*3200mm |
|
Overall Dimension(LxWxH)mm |
15ton |
17ton |
20ton |
Optional Parts

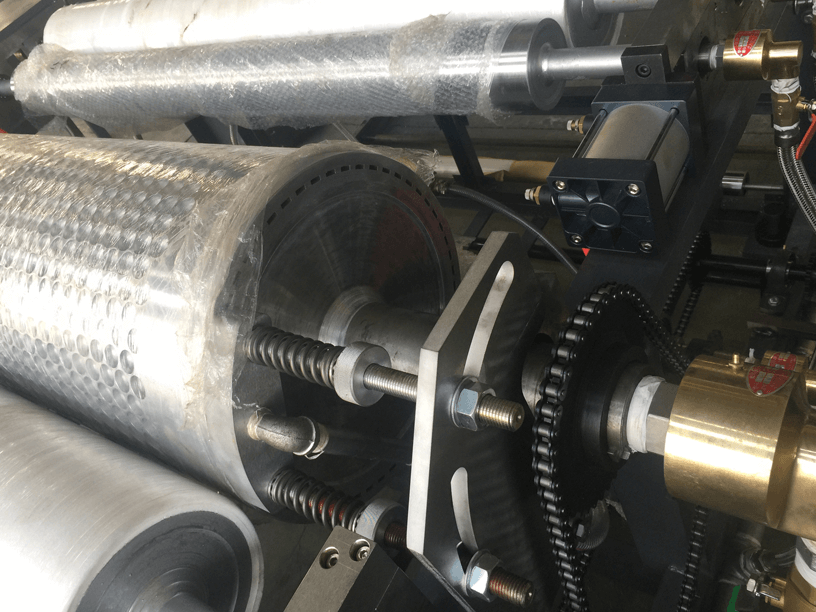

1.Side Sucking Forming Roller, Less Sucking Variation and Better Chilling Ability.

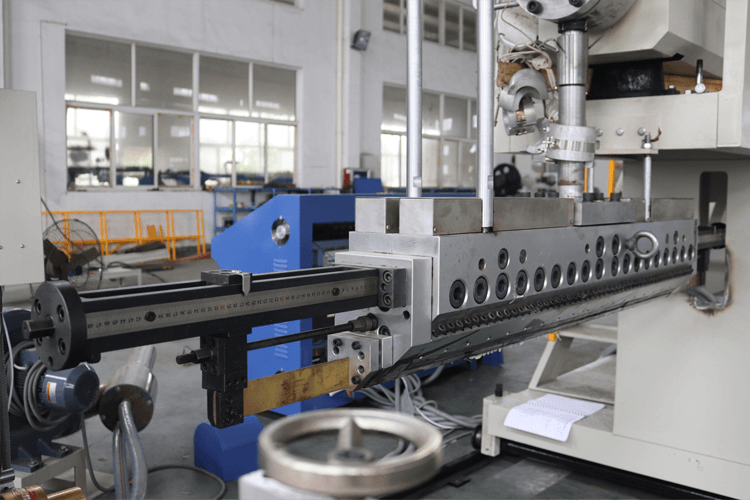

2.Lamination Grade T-Die, to improve product quality, make sure T-Die Blocking without changing of T-Die Pressure, no matter how much you block, material coming out always in even form.

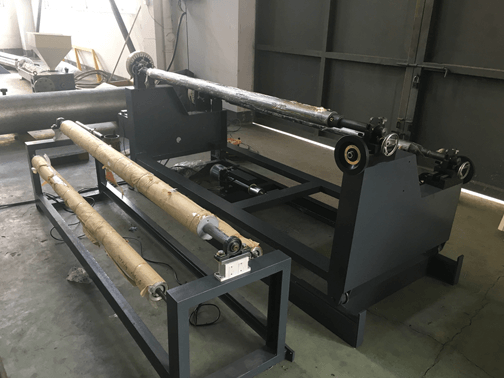

3.Unwinder with Automatic Tension and EPC

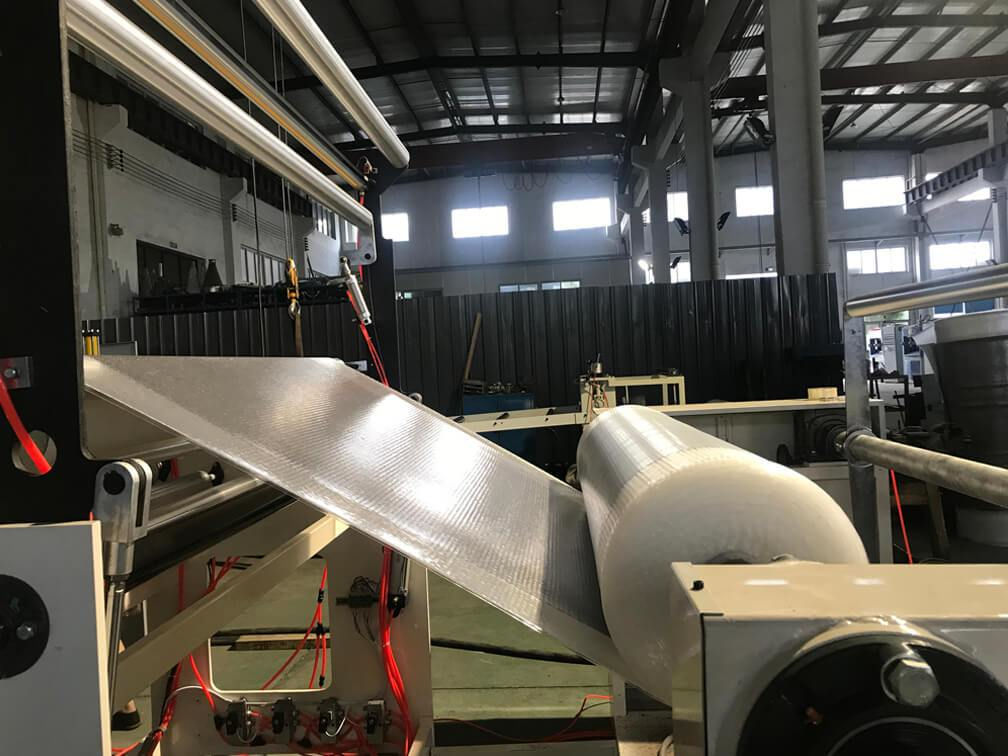

4.New Design of Winder which allows you to wind Big Jumbo Rolls max to 1500mm without making winder size too high. Save wastage and reduce labor work.
New Design Winder with Meg Tension Control and Converter Speed Control. Making Sure winding roll quality.
