7-Layer High-Speed Bubble Film Machine

Our 7-layer bubble film machine represents the pinnacle of co-extrusion technology, engineered to produce high-end protective packaging with unparalleled structural integrity. By integrating seven functional layers in a single continuous pass, this system produces bubble film that offers superior cushioning, exceptional barrier properties, and high puncture resistance. This makes it the premier choice for demanding industries such as electronics shielding, medical device protection, military-grade logistics, and cold-chain temperature-controlled packaging. Whether for high-value export goods or sensitive precision instruments, our machine delivers the durability and sealing reliability required by modern global supply chains.

Advanced Manufacturing Process

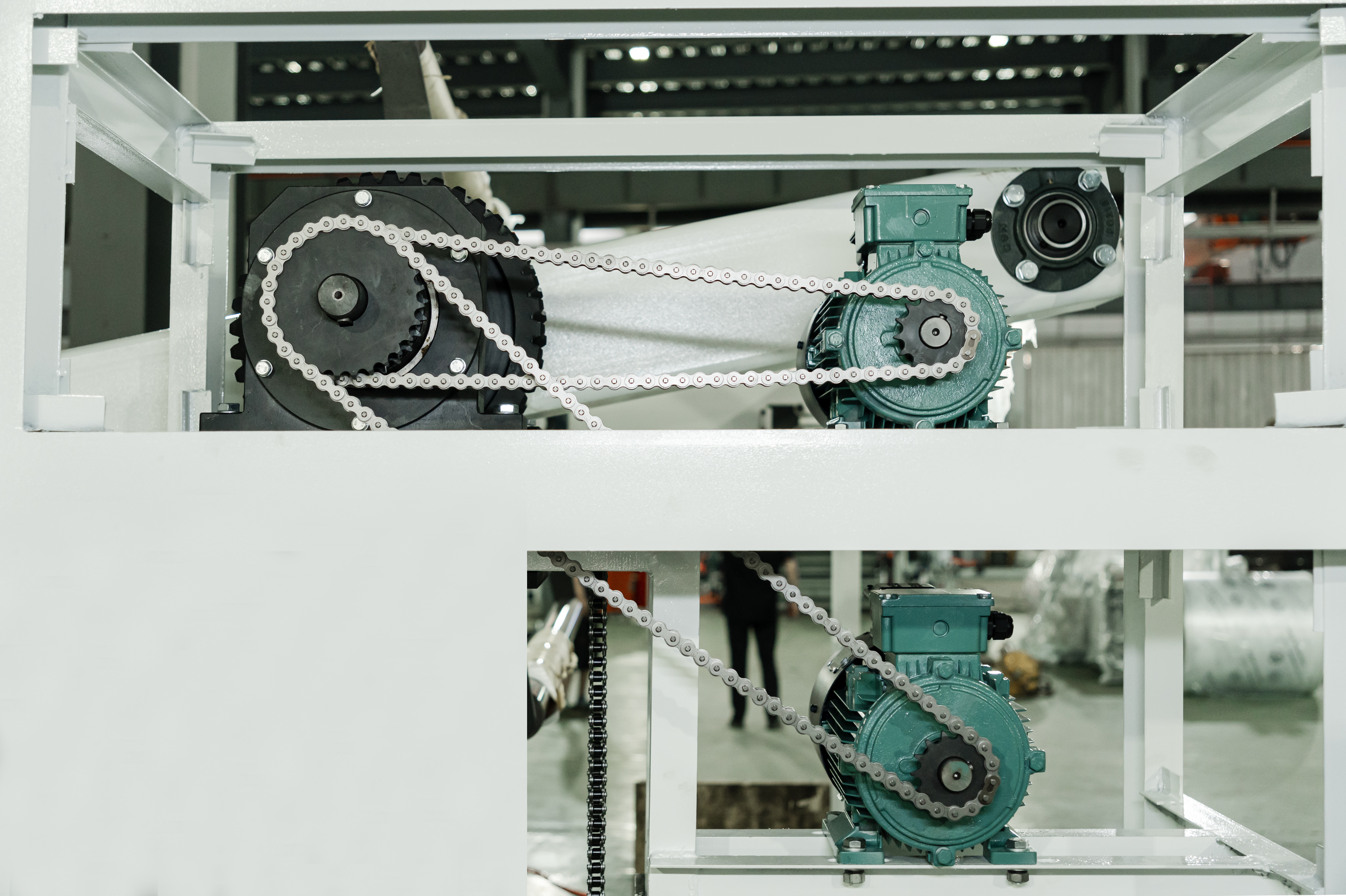

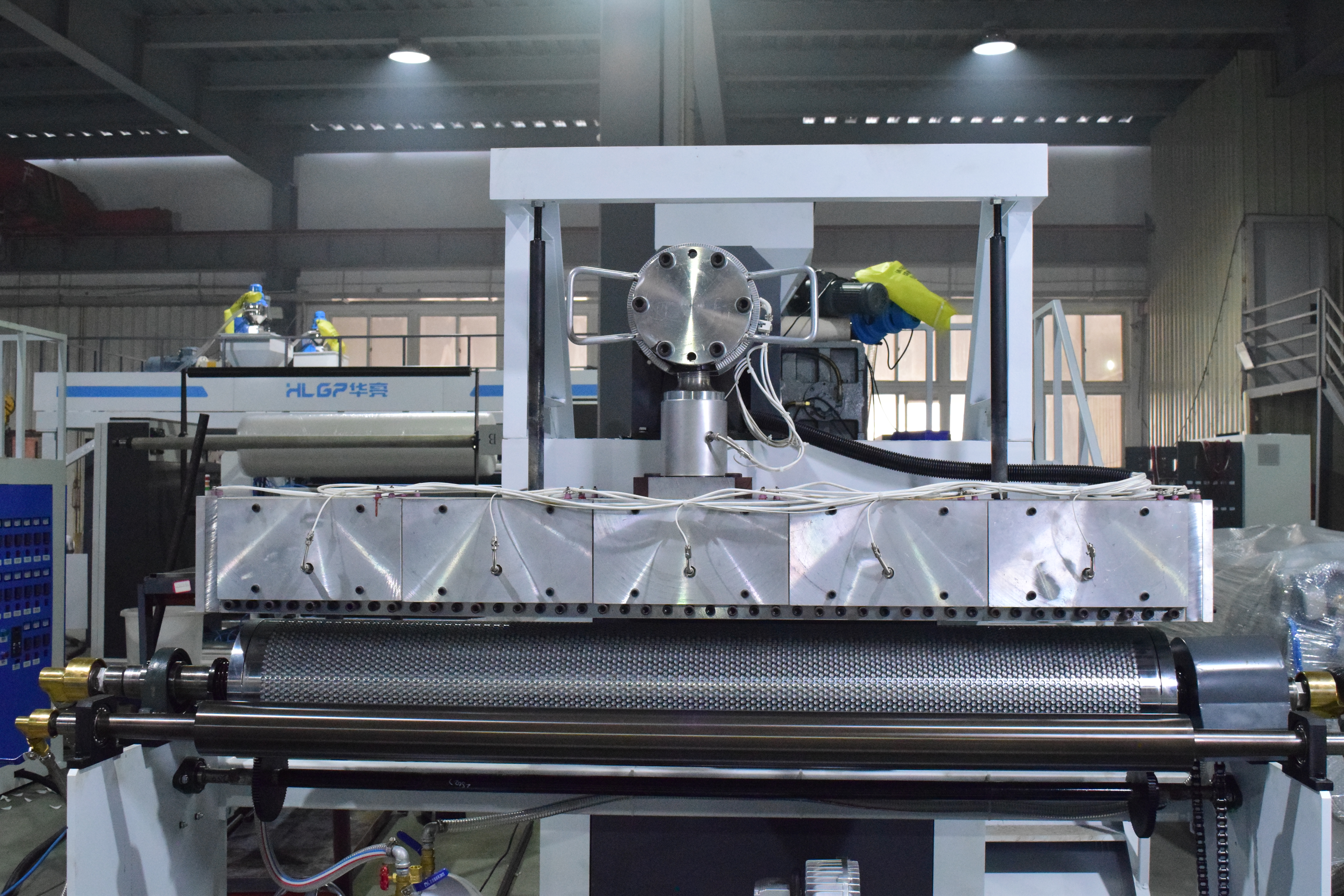

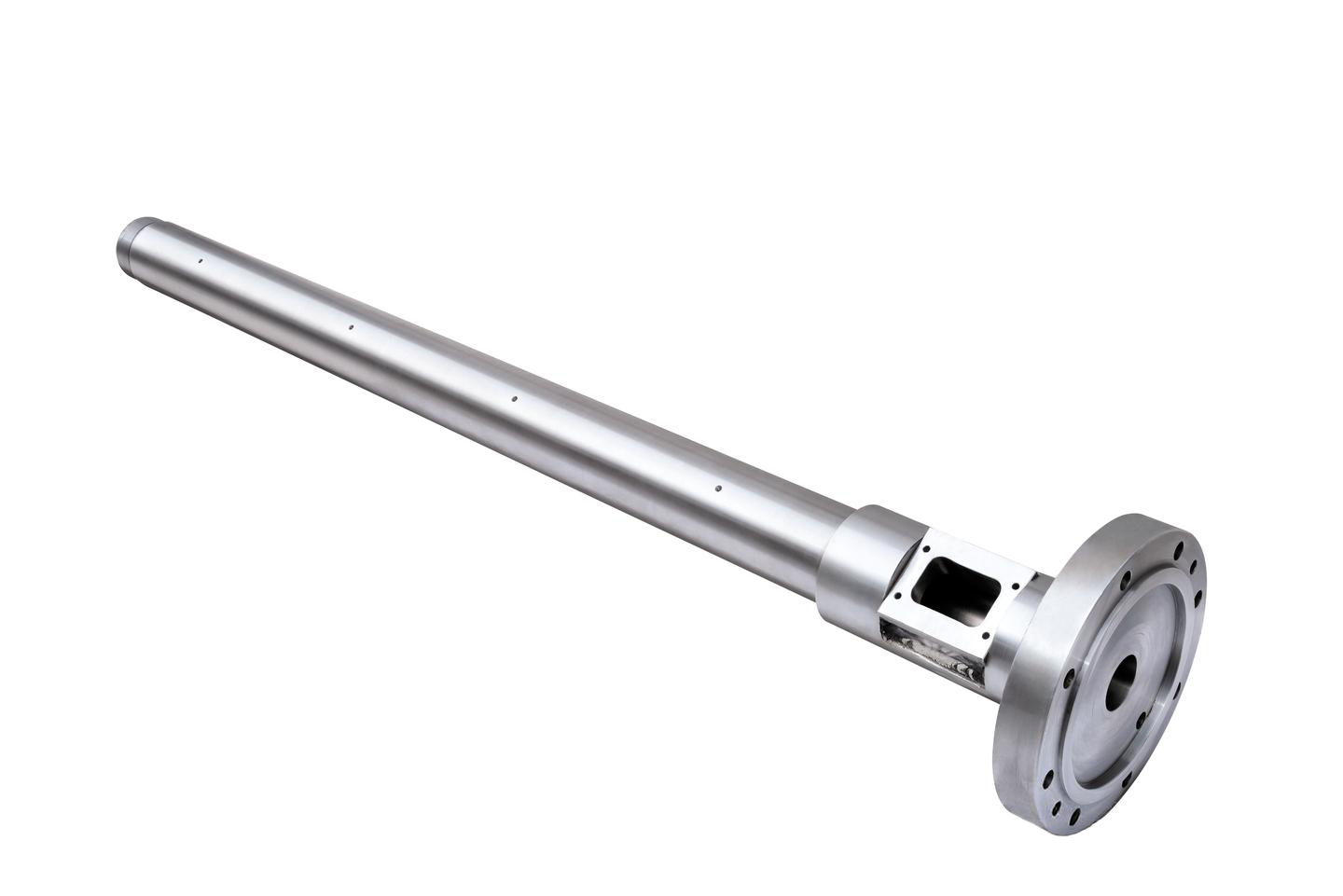

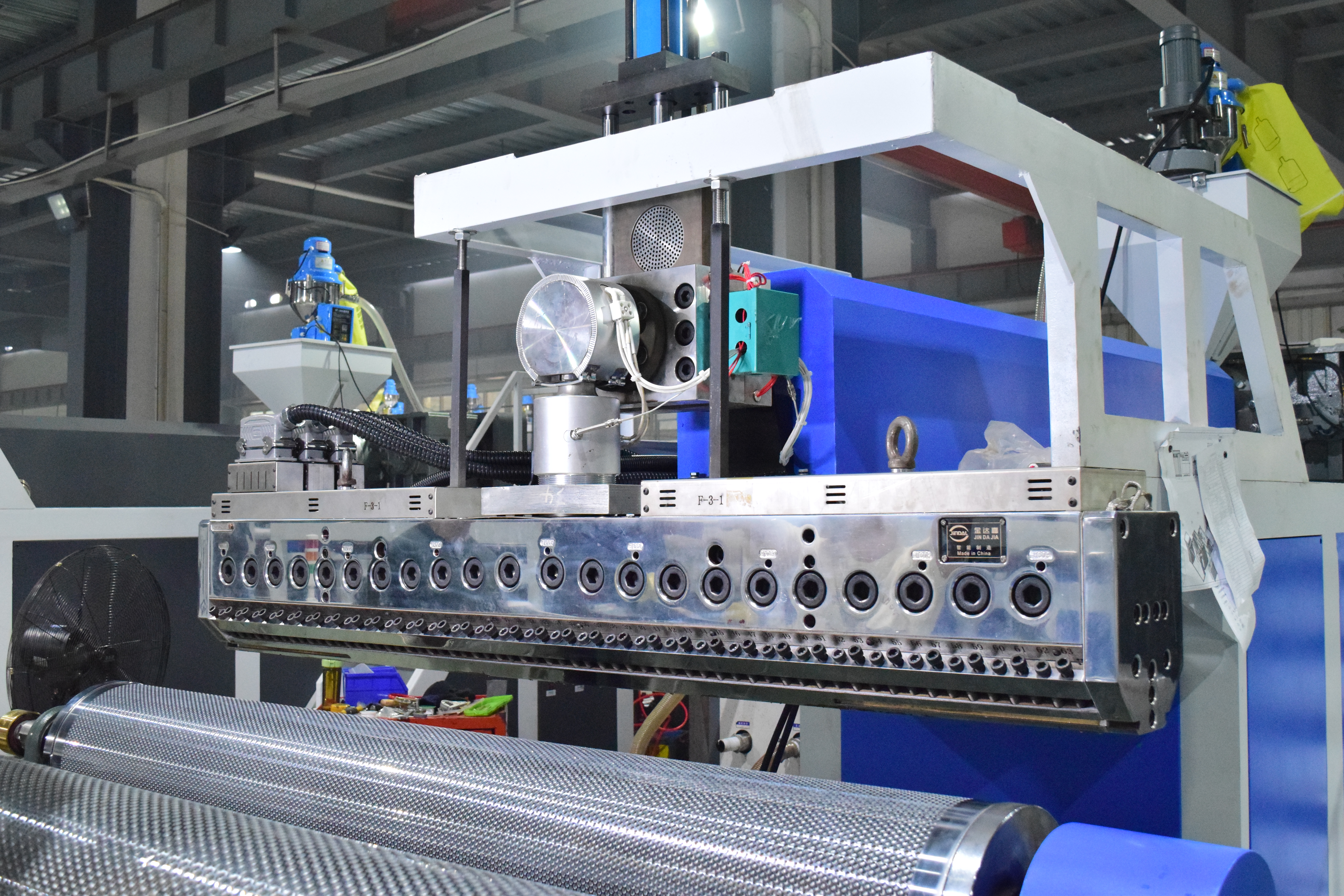

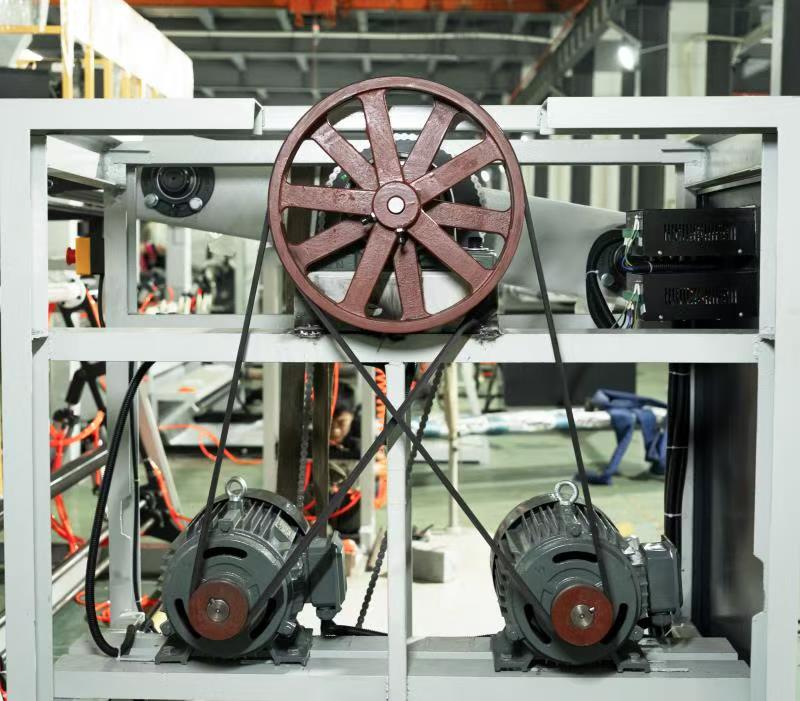

The production intelligence begins with a multi-extruder feeding system, where different resins—including LDPE, LLDPE, anti-static agents, and barrier materials—are separately processed to preserve their specific functional characteristics. Each extruder independently manages temperature profiles before delivering the melt to a specialized 7-layer distributor and a precision flat T-die. This ensures the melts are combined into a perfectly uniform composite sheet before passing over a high-precision vacuum bubble roller. The resulting air bubbles are well-defined and uniform, further stabilized by a multi-zone cooling roller system that ensures dimensional accuracy. The entire process concludes with a steady traction system and an automated dual-station turret winder, enabling non-stop, high-speed production with perfectly tensioned, market-ready rolls.

Operational Efficiency & Intelligent Control

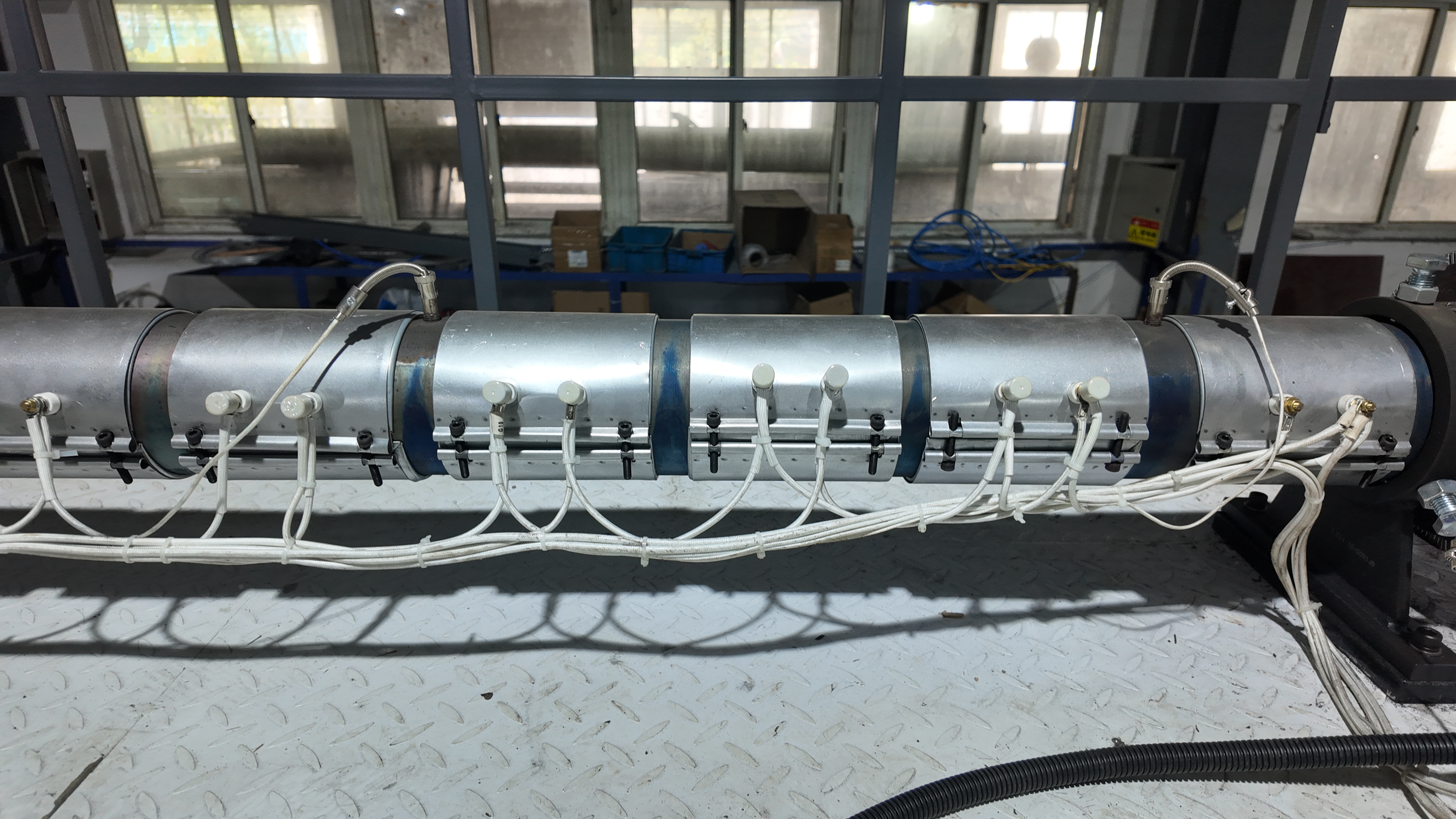

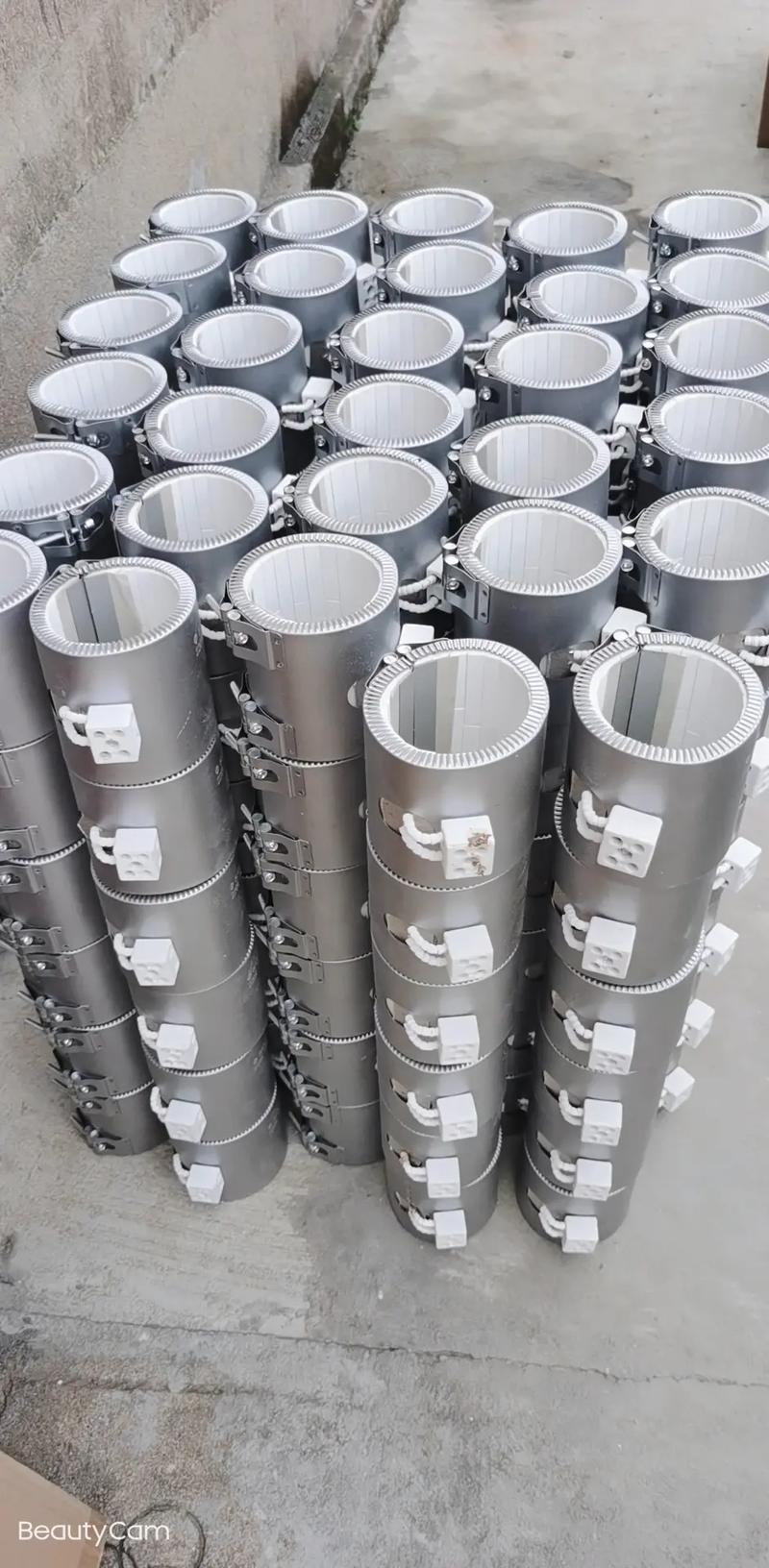

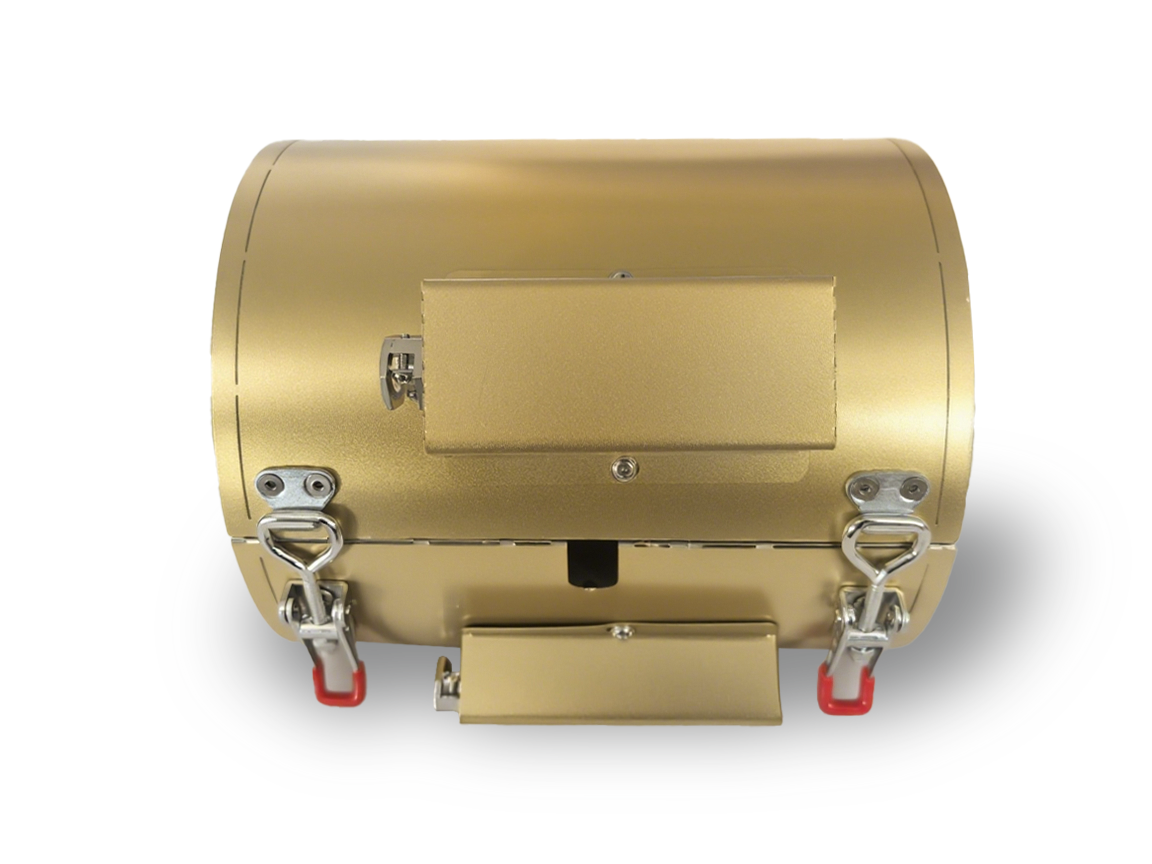

Beyond its output quality, this high-speed extrusion line is defined by its industry-leading energy efficiency and intelligent automation. Controlled by an advanced PLC system, the machine achieves a remarkable thickness tolerance of within ±3% and maintains a bubble integrity rate exceeding 99.5%, significantly reducing material waste. To support sustainable manufacturing, the system is designed to accommodate up to 50% recycled content in the inner layers without sacrificing the film's protective performance. Furthermore, the integration of infrared heating and high-performance insulated barrels reduces overall power consumption by more than 25%. This combination of precision engineering and green technology ensures that Hualiang Machinery provides a competitive, cost-effective, and future-proof solution for the global packaging market.
